Ver.11.0
Update
May. 11, 2024

HPGL/Vector/Image PrinterOut PloCon
  This HP describes PloCon which continuously prints drawings of various graphic files shown below on a Windows printer.
HP-GL, HP-GL/2, HP RTL, PDF, DXF, DWG, GERBER, NC-Drill, IGES, SXF, TIFF, JPEG, BITMAP, EMF, PCX, FPX, PNG, GIF

    HPGL/Vector/Image PrinterOut PloCon


Index
 Outline
 Input drawing file
 Starting command parameter
 Setup of pen
 Text font
 Setting of length unit system
 Auto exucute parameter setup
 Printer
 SelectPrinter
 Output list file creation
 Extension batch modification of file in folder creation
 Operation conditions
 Licensing fee
 Flow to trial, order, and use
 Latest upgrade history
 Download
 Contact us

Outline

PloCon is a program that continuously prints the drawing of HPGL / vector / image file to Windows printer and has the following functions. It does not display.
(1) Paper and output scale
  - Specify paper and automatically scaled to fit paper size
  - Specify paper and output on designated scale
  - Automatic paper selection with specified scale
    Automatic selection of the optimum paper and orientation of the printer
    that matches the drawing size scaled in the drawing area
(2) Interactive output / printing from other applications
(3) Line color, width change, whole drawing black and white / color switching,
    pen ON / OFF
(4) Vector font of character font / True type font switching
(5) Multi-page support
(6) Reading of many file formats as shown below.
    HP-GL, HP-GL/2, HP RTL, EMF, PDF, DXF, DWG, GERBER, NC-drill, IGES, SXF,
    EMF, TIFF, JPEG, Bitmap, PCX, FPX, GIF, PNG
    Note: It is necessary to install "ODA Converter" free software
          for input of DWG file.
(7) Output mode

Mode 1: Automatic output mode
PloCon monitors the specified input folder, prints when the input file enters the input folder, and the input file is automatically deleted after printing. If there is no input file, it waits until the file arrives.

Automatic output mode

Mode 2 : Continuation output mode
Plural drawing files described in specified output list file are outputted continuously.

Continuation output mode

Mode 3 : Step output mode
One file in plural drawing files described in specified output list file is outputted, and it waits for the next output instruction.

<AutoOut use example>
Step-1
Immediately after installing PloCon (initial setting), make the following settings.
Start PloCon and press the "Select Printer" button to set the output destination printer.
Click the "Auto" button and correct the red part of "Output Drawing File Name at Auto Output" as follows.
    Before:    <PloConData>\InData\*.Hgl
    After:       <PloConData>\InData\*. *
However,
<PloConData> is the following folder.
Please change
<username> to your Windows account name.
F
 C:\Users\<username>\AppData\Local\Isoplotec

Step-2
Start PloCon and press the "AutoOut" button.

Step-3
Copy the input file(press the "FileAttribute" button and register the file extension) you want to print in Explorer to the <PloConData>\InData folder. Then, after waiting for about 2 minutes, it will be automatically output to the printer. Every time you copy any file with Explorer, it will be output to the printer. The copied file will be deleted automatically after output.


<Example of parameter starting use>
Input file to output by Explorer is dragged to next.
  32BitOS:

C:\Program Files\Isoplotec\PloCon\PloCon.exe
  64BitOS:

C:\Program Files (x86)\Isoplotec\PloCon\PloCon.exe
Then, it is outputted to printer.


Return to Index

Input drawing file

PloCon can read HP-GL, HP-GL/2, HP RTL, PDF, DXF, DWG, GERBER, NC-Drill, IGES,
SXF, EMF, Bitmap, PCX, TIFF, JPEG,FPX, PNG file.
Please refer to "Drawing area when reading file of PloView series product" for drawing area(area displayed when issuing display all command) of the opened file.

Return to Index

Starting command parameter

PloCon starting command is as follows.
  [ ] is omissible.
  <Program Files> indicates the following.

32 Bit OS: C:\Program Files

64 Bit OS: C:\Program Files (x86)

"<Program Files>\Isoplotec\PloCon\PloCon.exe" /a [Output File Name]

If /a is attached, it will become automatic output mode simultaneously with starting.This will become output file if option of OutFile is attached at this time. If not attached, output file used for last time is used.
[Output File Name] accepts wild card.The same drawing file as [Output File Name] is looked for, if it is, it will output, and drawing file after output is deleted automatically.
When there is no drawing file, it waits until file comes.

"<Program Files>\Isoplotec\PloCon\PloCon.exe" /b [Output File Name]
If /b is attached, except that program will go into taskbar and dialog will not be displayed, the same operation as /a is carried out.

"<Program Files>\Isoplotec\PloCon\PloCon.exe" /c [OutList File Name]
If /c is attached, it will become continuation output mode simultaneously with starting.
If option of OutList File is attached, and this becomes output list file and does not attach at this time, output list file used for last time is used.
Plural drawing files described in output list file are outputted continuously.

"<Program Files>\Isoplotec\PloCon\PloCon.exe" /d [OutList File Name]
If /d is attached, except that program will go into taskbar and dialog will not be displayed, the same operation as /c is carried out.

<Program Files>\Isoplotec\PloCon\PloCon.exe [/wpWP] [/osOS] [/rxRX] [/ryRY] [/suSU] [/sdSD] [/srSR] [/slSL] [/dcDC] [/apAP] [/ncNC] [/oaOA] [Output File Name]
If parameter is specified here, various items will be set up. As for omitted parameter, parameter when ending to last time is set.

WP is output device, 1 is specified at the time of Windows printer 1, and
   2 is specified at the time of Windows printer 2.
OS specifies positive real number with output scale.
   However, it will become automatic scale if it is turned 0.
RX specifies positive real number by RiviseXScale.
RY specifies positive real number by RiviseYScale.
SU specifies zero or more integers by Upper PaperSpace (unit mm).
SD specifies zero or more integers by Down PaperSpace (unit mm).
SR specifies zero or more integers by Right PaperSpace (unit mm).
SL specifies zero or more integers by Left PaperSpace (unit mm).
DC Specify 1 to place the drawing in the center, 0 if not.
AP Specify 1 for automatic paper selection (A4 / A3 / A2 / A1 / A0,
   portrait / landscape), or 0 otherwise.
NC specifies an integer of 1 or more in the number of output copies.
OA shows OutAngle. In the case of 0 degree 0 is specified, and, in the case of      90 degrees, 1 is specified.
Output File Name:
   When specifying it, specify it at the very end.
   If specified, it will output and PloCon will be ended.
   If it is not specified, the PloCon main dialog will be displayed and you
   can output by interactive operation.

Please do not start the next PloCon, before PloCon is completed.

Return to Index
Setup of pen
Usually, although outputed with color of pen and line width in drawing data, it is changeable with setup of pen.


When drawing with the same color as the background color, change
the color

If you draw with the pen with the same color as the background color, the picture disappears. If this check mark is checked, if the background color and the drawing pen are black, draw the drawing pen in white and draw it. If the background color and drawing pencil are other than black, draw the drawing pen black and draw it.
We recommend checking ON if the input file is DXF and IGES file, and check OFF if input file is GEBER file.
Please refer to "Problem about color, and solution".

Line and fill DrawMode
  "Copy"           : When you want to see with a draft precedence
  "Merge"          : When you want to see overlapping parts in color mixture
  "Xor"            : To make it invisible where the figure is doubled
  "Command in data": When displaying according to instructions of drawing data

Foreground color setting
  Priority 1: Black / white mode is set by setting to monochrome display mode.
  Priority 2: It becomes the color of PC instruction of drawing data.
              If there is no PC instruction in the drawing data, priority 3
              is applied.
  Priority 3: The color will be set for each pen.

Line width setting
  Priority 1: When set to "All pan line width is same 16th pen", it will
              be displayed with line width of 16th pen.
  Priority 2: It becomes the line width of the PW command of the drawing data.
              If there is no PW command in the drawing data, priority 3
              is applied.
  Priority 3: Pen width set for each pen (0 to 10.00 mm).

Return to Index
Text font
Windows font and Vector font can be selected.
You can change the size to the character size of the data.


* Vector Font
The character shape is drawn with polygonal lines with a fixed line width, which is quite different from the Windows TrueType font. In general, Vector fonts display faster than Windows TrueType fonts.

* Windows Font
Displayed with the selected Windows TrueType font.

* Windows Font Closed Line Character
Displays the selected Windows TrueType font as a closed-line character without filling it. Use it when you want to draw characters cut with a cutting plotter.



Return to Index

Setting of length unit system
You can select the unit system of coordinates and dimensions to use from the following.
  * Millimeter mm
  * Centimeter cm
  * Meter m
  * Inch in
  * Foot ft
  * Yard yd


Return to Index

Auto exucute parameter setup
If SetAuto button is pushed, an automatic execution parameter can be set up.


Outlist File Name at ContinueOut, StepOut
Outputs the drawing file described in this file during continuous or intermittent output mode. A list of drawing file names is displayed in "Output list file contents".

Output Drawing File Name at Auto Output
In automatic output mode, it searches for files matching this output file name and outputs automatically.

Wait Time of AutoOutput
It is the interval to go to see if the output drawing file data was created in the folder.

Return to Index
  Printer
  The Printer button is pushed and printing conditions are set.
The paper size displayed in this Dialog is a temporary value because the file has not been read yet. When outputting with the ContinueOut button, the numerical value corresponding to the loaded file is displayed.



AutoScale
When this check mark is attached, the scale is automatically set so that the drawing area fills the paper area excluding the paper margin. At this time, "OutScale" can not be set.

OutScale
Specify the output magnification within the range of 0.01 to 100.0.

AutoSelectPaper(Size, Portrait/Landscape)
Specify the paper standard loaded in the printer in "Paper standard" from the following.
   ISO A0 to A4
   ISO B0 to B5
   JIS B0 to B5
   ANSI A to E
   ARCH A to E, E1
This function is valid when "AutoScale" is not checked, and the paper size according to the output drawing size is automatically determined from the standard paper size, and the paper orientation is automatically determined from the portrait and landscape. The order of paper selection is as follows.

For ISO A series:
A4 portrait → A4 landscape → A3 landscape → A3 portrait → A2 landscape → A2 portrait → A1 landscape → A1 portrait → A0 landscape → A0 portrait
If it is larger than this, A0 landscape

If the printer does not support the paper size, if the printer can not change the paper orientation, do not select its size or direction. When the output drawing size exceeds the maximum paper size that can be selected, select the maximum paper and automatically adjust the output scale so that the drawing size matches that paper size.

Return to Index


  SelectPrinter
  Press the SelectPrinter button to select printer name, paper size, paper orientation.

Return to Index


Output list file creation
If the CreateOutList button is pushed, output file at the time of continuation output and step output can be specified.


Return to Index
  Extension batch modification of file in folder
  It is necessary to set up extension of file name by file attribute beforehand for every kind of file to read.
However, when file extension uses many extension which cannot be specified like consecutive numbers, and layer number of CAD, it becomes serious work to change extension manually beforehand.
In such a case, please use this program called FileTypeChgE recommended to below.

1. Program name : FileTypeChgE
2. Licensing    : fee No charge (free software)
3. Outline
Move extension of all file in folder to file name end, and apply the specified extension.
File extension batch change program in folder

4. Usage
4.1. Interactive method
Double-click FileTypeChgE.exe in Explorer.
Set parameter shown below and push the Execute button.
a. Folder in which file exists :
   Set folder including file which changes extension.
b. Extension after change ("." is not required):
   All the files are changed into extension set here.
c. File name which saves processing result file list :
   Set file name of text file which puts in processed file name list.
   When this item is set un-typing, this file will not create.
d. Extension before change ("." is not required):
   The file that matches the extension specified here will be changed.
   If you set it to "*", all the files in the folder specified in item a will be changed.

4.2. Command line method
When the next command is typed in command prompt (DOS window) of Windows, it will execute immediately and will end. /a, /b, /c, and /d parameter are omissible. An omission will use parameter used last time. And when all the parameters are omitted, it will start by interactive method.

FileTypeChg.exe /a "Folder in which file exists"
                /b "Extension after change"
                /c "File name which saves processing result file list"
                /d "Extension before change"

This method is automatable by including in batch file.
For example, create batch file PloCon.bat the next contents were described to be.

"C:\FileTypeChgE\FileTypeChgE.exe" /a "C:\HpglData" /b "hgl" /c "C:\Temp\OutList.txt" /d "*"
"C:\Program Files\Isoplotec\PloCon\PloCon.exe" /c "C:\Temp\OutList.txt"


When PloCon.bat is double-clicked by Explorer, extension of all the files in
"C:\HpglData" folder will be changed into "hgl", and PloCon starts, and carry out consecutive output of all the files.

5. Download
 FileTypeChgE Ver.1.02 Software Download


Return to Index



Operation conditions

Personal computer of Intel compatible CPU mounting
- Memory: 1 GB or more
- Empty capacity of hard disk drive: 100 MB or more
- Screen resolution: 1024 dots x 768 dots Above

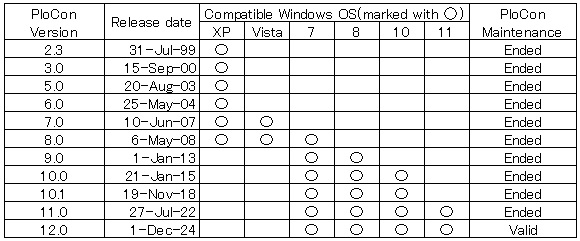

- OS: Windows 7, 8, 10 and 11    32Bit, 64Bit
- It is necessary to install some printer drivers.
  Printer driver of high resolution is required to read PDF file.
- Free software "ODA File Converter" must be installed for input/output of DWG files.


Return to Index

Licensing fee

 When used 30 days or more from installation, please remit the next licensing fee.

 Licensing fee is                 70.00 US$ / license

Return to Index
Flow to trial, order, and use
1. Trial
Please download product from this HP. Since product is compressed into ZIP file, please extract it with suitable thawing software. There is a file called Readme.txt in the decompressed file, so read the product overview, installation method, uninstallation method, license agreement, licensing fee, license cancellation, protection release, inquiries, and version upgrade history. And since a file called Setup.exe is in extracted inside, it is installable if it double-clicks by Explorer. Opening to the public on HP serves both as trial and object for formal. All the function usage can be carried out free for 30 days from installation for trial. If 30 day will pass and password will not be entered, protection starts and product stops working. Please order the formal version, when you use more.

2. Order of formal version
It can pay with PayPal or credit card with the next button.
PayPal(ペイパル)|Mastercard, VISA, American Express, Discover, UnionPay, JCB


Please refer to Readme.txt file to carry out bank transfer.

Please send the next "order sheet" to e-mail address described at the last of this HP.

Order sheet
1. Soft name: PloCon (English)
2. Soft version no.: 11.0
3. Order quantity: 1
4. Company name:
5. Offer person name:
6. Offer person E-mail ID:
7. Charge payment day:
8. Charge payment amount:

3.Sending of password
The copyright holder will email the password when payment of the licensing fee has been confirmed.

4.Release of lock
In order to enter password, when starting PloCon.exe, it is necessary to carry out mouse right-click, to take out pop up menu, and to select "Run as administrator". Execute PloCon and push 'InfVersion' button and input the password.

5.OS exchange, or exchange of installation personal computer
Even if you replace exchange of OS, or installation personal computer, given password can release lock.
However, at the same time the number of units that can install the product on the PC is within the number you ordered.

6. Revision up (upgrading the decimal point of version number to 2nd place)
Revision up is free. Please download the revision software newer than HP and reinstall it. The previous password is valid.


Return to Index

Latest upgrade history

Ver.10.00 March 2, 2015
(1) It corresponded to input of DWG file.
Notes: It is necessary to install free software "Teigha File Converter."
Refer to Step7 of 2nd clause for the installation method.
(2) Support the 2nd level of JIS kanji by vector font.
Ver.10.00 March 31, 2015
(3) Font of vector font JIS level-2 kanji set was improved.

Ver.10.01 July 19, 2015
(1) It supported to input of SXF file (file extension is P21 and SFC).
(2) Add Multi-page file correspondence ("Separate into page and print", or "Print all the pages in piles") with the SetPrinter button.
Ver.10.01 July 25, 2015
(3) It repaired that vertical writing text had fault by SXF file input.
(4) Processing of DV (text route) command except right writing was repaired.
Ver.10.01 August 12, 2015
(5) Since it outputted and the file could not be deleted after output when drawing file was creating from other applications at the time of auto-output, there happened case where the same file was outputted repeatedly. It improved so that it might output, after waiting for other applications to complete creation of drawing file.
(6) Some of faults were repaired by SXF file input.
Ver.10.01 September 15, 2015
(7) It supported to Windows10.
Ver.10.01 November 17, 2015
(8) Abnormality display has been improved for arc of very small angle.
Ver.10.01 November 20, 2015
(9) It enabled it to set up judgment angle of very small arc or circle by "SetFileAttribute"-"Circle and arc judging angle".
Ver.10.01 April 7, 2016
(10) When PDF and EMF file were outputted by auto-output and it became error, problem by which the error is not displayed on error information window, and error is repeated endlessly was repaired.
Ver.10.01 July 25, 2016
(11) Defect of LA (line attribute) command in case line end and joint shape are except being round was repaired.
(12) "Initial of Line End Shape" of "Set-Line property" dialog was changed into "Shape of line end and joint".
Ver.10.01 September 15, 2016
(13) Depending on PDF creation application, PDF version information may not match notation and entity. When such a PDF file was read, it was not able to read (error code=10000).
It enabled it to read this.
Ver.10.01 December 16, 2016
(14) When output drawing size was larger than paper size, drawing position of the right left upper and lower sides was abnormal. This was repaired.
Ver.10.01 December 20, 2016
(15) When output drawing size was larger than paper size and paper margin was larger than 0, it repaired having been printed without reflecting paper margin.
Ver.10.01 January 3, 2017
(16) PayPal fee about licensing fee remittance which user had paid was eliminated.
Ver.10.01 January 9, 2017
(17) When evaluation period goes out, or when uninstalling, function which fills in evaluation result and carries out e mail transmission was added.
Ver.10.01 January 11, 2017
(18) An output of image files, such as TIFF file, repaired having become error.
Ver.10.01 May 10, 2017
(19) It was ignored when there existed Bitmap which black and white reversed in PDF and EMF input, and it repaired becoming whole surface black.
Ver.10.01 August 30, 2017
(20) When file attribute button was pushed, it could be made to perform PDF file reading scale setup.
Ver.10.01 September 27, 2017
(21) Display of FT command of HPGL was improved.
Ver.10.01 October 29, 2017
(22) When figure existed on boundary of drawing area, half of line width was cut. Then, it improved so that width and height of drawing area might be enlarged 1 mm and might be outputted.
Ver.10.01 January 29, 2018
(23) Fixed abnormally when opening some abnormal files.

Ver.10.02 March 27, 2018
(1) Set paper standard (ISO A0-A4, ISO B0-B5, JIS B0-B5, ANSI A-E, ARCH A-E, E1) can be set with SetPrinter Dialog.
(2) Fixed the problem that character position shifted under extremely rare conditions.
Condition:
When characters are drawn with multiple LB (label command) without pen movement instruction after LO (label origin command) other than the initial value
(3) Under the following conditions, we corrected the fault that black and white color selection was displayed incorrectly.
    Set to black and white
    Data that draws figures while changing colors with PC (pen color designation) command
(4) Fixed an obstacle in which filled figures are not displayed with EMF output.
Ver.10.02 May 04, 2018
(5) Improved reading accuracy of PDF files.
   PDF reading scale correction is automatically set during installation.
   PDF reading scale correction X, Y can be set in the input file setting.
   We prepared a button which can automatically set PDF reading scale correction X, Y in input file setting.
   PDF reading scale correction can be set automatically on the command line.
Ver.10.02 Jun 11, 2018
(6) When the resolution was over 45 degrees with CI (circle drawing) command of HPGL, it was drawing with octagon. We changed it to draw with a triangle when the resolution is 120 degrees or more.
Ver.10.02 August 10, 2018
(7) The initial color values of pen table No. 3 and 4 are matched with the color table of PloView comment file.
Ver.10.02 October 23, 2018
(8) Kanji of HPGL specification is to switch to kanji mode and to use JIS code by LB (Label) command. However, there is data that uses ShiftJIS code in the case of not switching to Kanji mode (1 Byte mode).
Therefore, even in such a case, we improved to display Kanji.
(9) When Text size correction was set to something other than 100% with Set-Text, it did not work correction value or position of Text. We improved this.
(10) If Text is on the boundary of the drawing size, influence the drawing area. Conventionally, when "Text size correction" is set to a value other than 100% in Set-Text, when opening a file, Text area was calculated with standard size. This was changed to the corrected size.
(11) In case of combination of DV (horizontal writing, vertical writing character) instruction and LO (designation of left alignment, right alignment, centering of character string) instruction, there was a case where character misalignment occurred. We fixed this.
(12) When inputs DXF file, clockwise circular data was skipped. We fixed this.
(13) It was not corresponded with DXF file input when Text width and Text space were minus (mirror display). Corresponding to this.
(14) Text size at PDF input was adjusted.

Ver.10.10 January 23, 2019
(1) The following functions were upgraded by drastically updating the PDF reading module.
 * Traditionally, when reading PDF files edited with PDF editing tools such as Acrobat, edited figures were not displayed. We made it to display.
 * Text reading processing was adjusted.
 * The clipping process was adjusted.
(2) The initial setting value of the pen setting is changed as follows.
Color is changed when pen color is same color as background: ON --> OFF
Turn down image: ON --> OFF
(3) When character width or character height is minus in reading EMF file, it was not displayed with mirror-on. We tried to display with mirror-on.
Ver.10.10 April 26, 2019
(4) Since the HPGL file has no drawing area information, the maximum area of figure is used as the drawing area. The "Set""Input File" menu now allows you to select the method for determining the drawing size of the HPGL file from the following.
  * Figure maximum area
  * PS (PlotSize) instruction area.
    Maximum area of figure without PS instruction.
  * IW (Input Winow) instruction area.
    Maximum area of figure without IW instruction.
  * IP (ScalePoint) instruction area.
    Maximum area of figure without IP instruction.
  * Automatic (PS → IW → IP → maximum figure)
In addition, setting whether to include the origin in the drawing size.
(5) PloCon drawing area (print area) when reading DXF / DWG file can be selected from figure maximum area or drawing size of DXF / DGW file. The PloCon drawing area when reading SXF file is the drawing size of the SXF file.
Ver.10.10 May 08 2019
(6) I fixed that PloCon hangs up at your next operation.
    Press CtreateOutList button.
    When there is only one file in Output Candidacy file List, click that file.
    Press ==> button.
Ver.10.10 Jun 01, 2019
(7) Fixed the problem of abnormal display when there are multiple Splines according to the condition in DXF file input.
(8) Fixed the problem that the surface becomes abnormal display according to the condition by PDF file input.
Ver.10.10 July 05, 2019
(9) Fixed the problem that figure in which the MC instruction of HPGL data is Merge is not displayed.
Ver.10.10 Oct 01, 2019
(10) When ordering from Japan, the tax of the license fee was changed to 10%.
Ver.10.10 October 19, 2019
(11) When putting the Windows GodMode icon on the desktop, an error occurred at startup. This was repaired.
Ver.10.10 January 14, 2020
(12) Conventionally, free software "Teigha File Converter" has been used for DWG-DXF conversion.
Open Design Alliance, the copyright holder of "Teigha File Converter", has changed it to "ODA File Converter". So we responded to this.
Note: "Teigha File Converter" can be used as it is.
(13) Added support for text format codes (Unicode, MIF, forced line feed) when reading from DWG or DXF.
Ver.10.10 May 18, 2020
(14) DXF, DWG, PDF, and EMF files could not be opened normally when the decimal symbol in the numeric format in the Regional and Language Options of the control panel is other than ".".
I repaired this.
Ver.10.10 August 18, 2021
(15) Fixed the problem that hangs when multiple files are selected in "CreateOutList" Dialog on Windows 10 Pro PC.
Ver.10.10 May 2, 2022
(16) It was modified to delete the temporary processing file that caused an error when the program ended.
Ver.10.10 June 8, 2022
(17) When all the constituent points of the surface are the same, only the outline is drawn and not filled, This has been improved.
(18) Added support for alpha blend bitmaps in PDF and EMF files.

Ver.11.00 July 27, 2022
(1) Compatible with Windows 11.
(2) Code signing was added.
By attaching a code sign, the software distribution source is authenticated, and it is guaranteed that spoofing and content tampering have not been performed. Recently, Windows and security check software have tightened security checks, and there are increasing cases of false recognition even though there is no virus. Code signing may reduce false positives.
Ver.11.00 February 10, 2023
(3) Added the following text to Article 2 of "License agreement".
   "This software cannot be operated remotely."
Ver.11.00 March 12, 2023
(4) Prevented multiple PloCon from starting at the same time.
Ver.11.00 September 15, 2023
(5) Updated the deadline for code signing.
(6) Fixed the following problems when inputting PDF and EMF files.
 * Abnormal display of Bezier curve during input
 * During input, display abnormality of POLYPOLYGON (surface) with multiple closed loops
 * Character display abnormality when inputting/outputting a file with characters in vertical writing font with @
(7) Corresponds to vertical writing FONT characters with @ when inputting HPGL1, DXF, DWG, IGES, and SXF files
Ver.11.00 December 31, 2023
(8) In "PDF file setting" when you press "FileAttribute".
    I added the "Delete painting out of white" checkbox.
    If you check this, white fill data will be deleted when opening a PDF file.
Ver.11.00 March 3, 2024
(9) The following HPRTL commands are now supported.
'ESC%A'(enter PCL mode), 'ESC*rB'(end raster graphics)
Previously, when opening a file, the image shape of this command was ignored.
Ver.11.00 April 29, 2024
(10) Fixed a bug where a white filled rectangle was displayed at the top left of the drawing area when inputting PDF or EMF files.
    This is an improvement related to paragraph (8).
    It works regardless of ON/OFF of "FileAttribute" - "PDF file setting" - "Delete painting out of white".
Ver.11.00 May 11, 2024
(11) When inputting a PDF or EMF file, if there was binary data of a raster image figure, there was a problem in which the figure would not be displayed in very rare cases. This time, we have revised this.
(12) When inputting PDF or EMF files, it took a long time to open if there were raster image shapes. This has been sped up.

Return to Index

Download

  PloCon Ver.11.0 Software download

   Note :
    1.As for the installation method, after extracting the downloaded file,
      execute Setup.exe according to the contents of the Readme.txt file.
    2.Our product has been virus checked.
      When "Windows protected your PC" is displayed at the time of installation,
      if there is only "Don't run" or "OK" button, please click "More info" and
      press "Run anyway" button.
    3.This HP is always put up only the latest version.
      Acquisition of an old version becomes impossible.
      Please copy the downloaded file to a data medium for re-installation.


PloCon Ver.11.0 Catalog(PDF) download

Return to Index

Contact us




Return to Index
